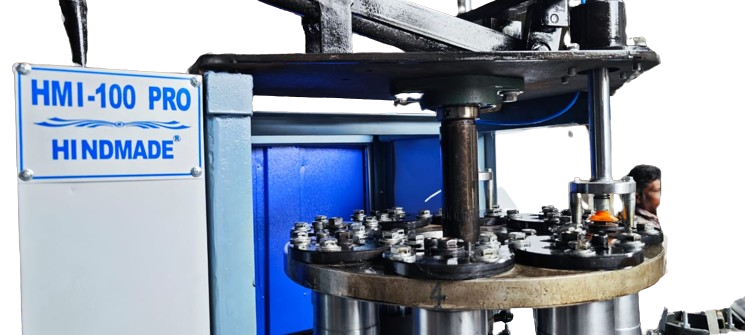

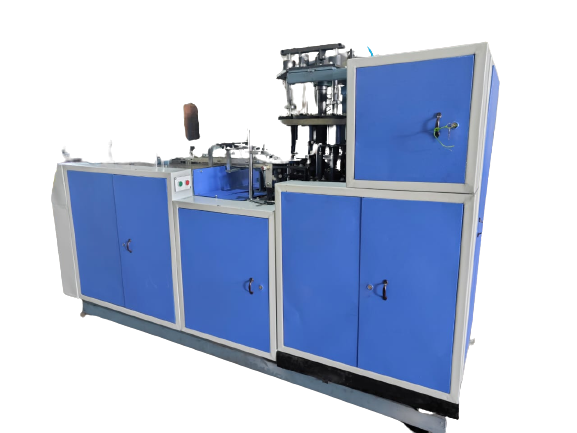

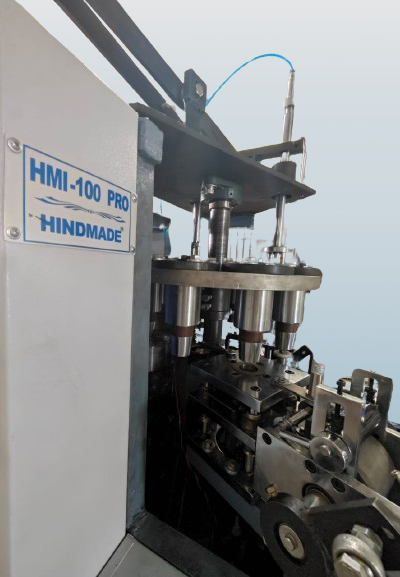

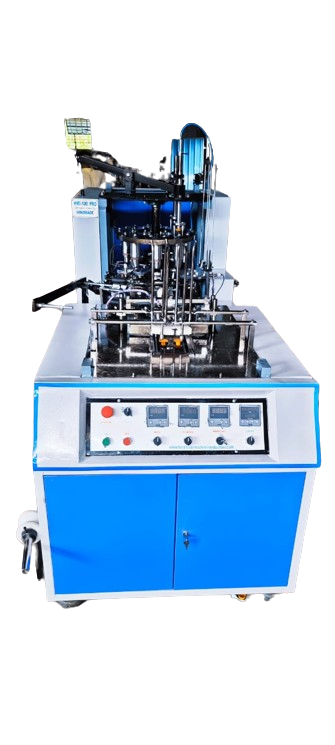

HMI-100 Pro High Speed Paper Cup Machine.
We designed 2 different kind of paper cup making machines, which is HMI-100 and HMI-100 PRO, for that HMI-100 is suitable for small bottom paper cups like 55-75ml on 35 to 45 bottom diameter and the production should be more then chinese machines. Length of the HMI-100 paper cup machine is slightly different compare than normal other machines, at the same time the production will be higher than Chinese paper cup machine. Our paper cup machine made by heavy carbon steels, which is having longer and stronger life, so there is no question araise about quality of our brand new paper cup machine and also hardening the most of the parts, where is needed.
HMI-100 Pro Specification
FEATURE | SPECIFICATION | |
---|---|---|
Description | Fully Automatic High Speed Paper Cup Making Machine | ![]() |
Electrical Supply | Single / Three Phase | |
Production Capacity | 80 - 110 Per Minute | |
Sensors | 4 Sensors | |
Cup Size | 45 - 330 ML (*Conditions Apply) | |
Bottom | Direct Bottom Technology | |
Paper Thickness | 130 - 270 GSM | |
Top Curling Lubrication Oil | Paraffin Oil | |
Power Consumption | 3.5 Kilowatt | |
Control Technology | PLC Control Technology System | Direct Bottom Technology System |
